In Focus


The dazzling show piece of Vaughan Constructions Epping Distribution Centre is a giant stainless steel globe towering above the breezeway. Architectural engineers Ivanoff Design Consultants and its team of subcontractors designed and constructed the globe as well as achieving its successful installation.

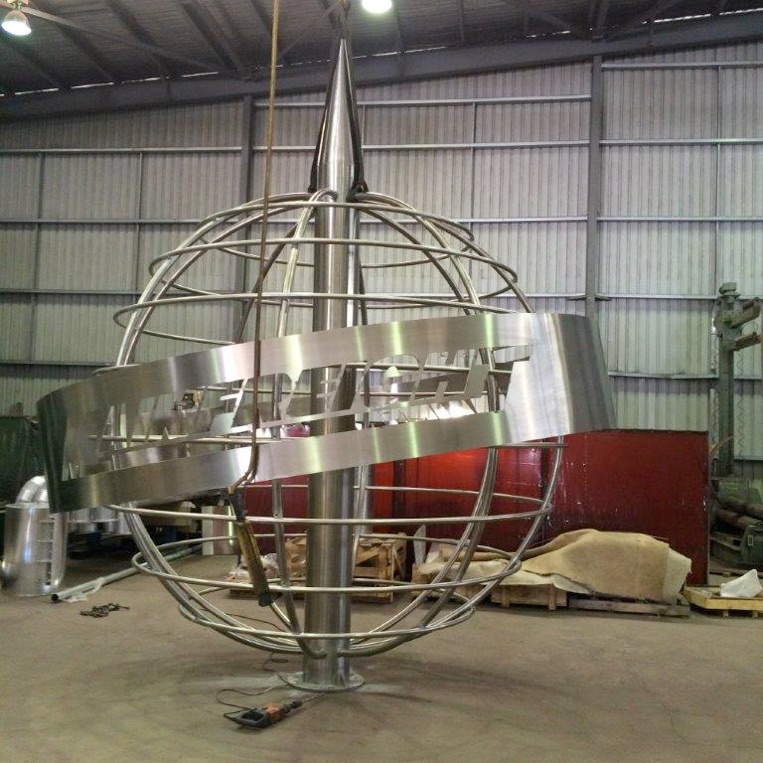

Signifying Mainfreight's business of global logistics, the structure consists of a stainless steel and galvanised column supporting a globe of stainless steel tube and pipe. “It’s a big ball on top of the column,” describes Peter Ivanoff, Principal, Ivanoff Design Consultants.


The hollow stainless steel tubes curved to create latitudes and longitudes, contain LED lights to eliminate the globe at night while the equator of the globe consists of inclined stainless steel bands laser cut to read “Mainfreight” when lit.


“It was most interesting to design and erect”, says Peter who, along with a team of subcontractors, designed, fabricated and installed the globe.


The primary subcontractors engaged by Ivanoff Design Consultants included structural engineers Lambert and Rehbein, Advanced Fuel Tanks for fabrication of the ball, Future Steel for Bay structure and site fabrication, Smithwell for section rolling and bending, and Custom Cut Metals for laser cutting.


With an overall height of 9.5m, the globe at self measures 3.3m in diameter with the band diameter of 4m. The longitudes feature 50mm diameter tube, the latitudes 32mm diameter and the central column measures 324mm diameter. Completing the affect are 72 LED lights custom made in New Zealand by Virtual Light, Auckland.

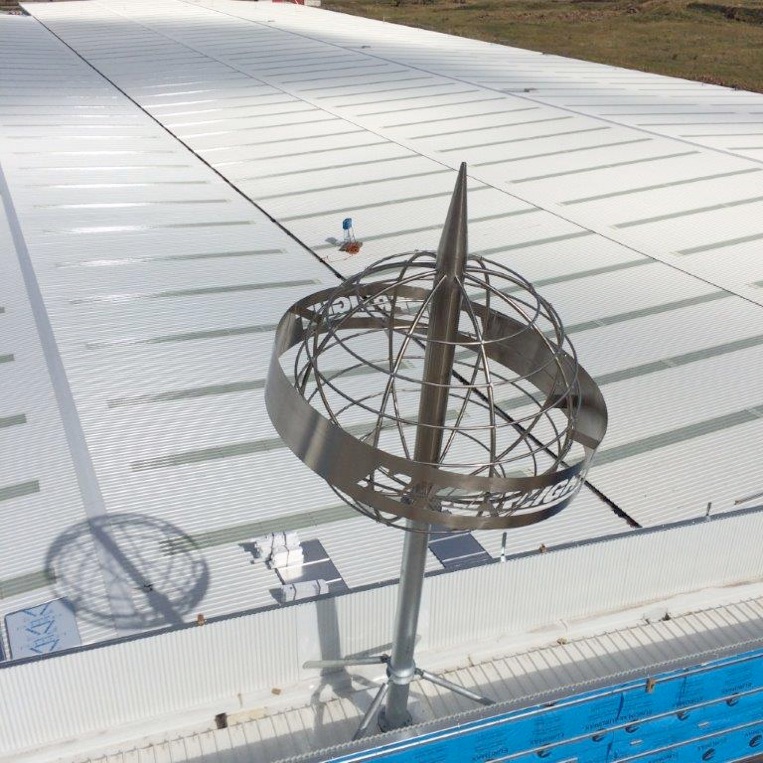

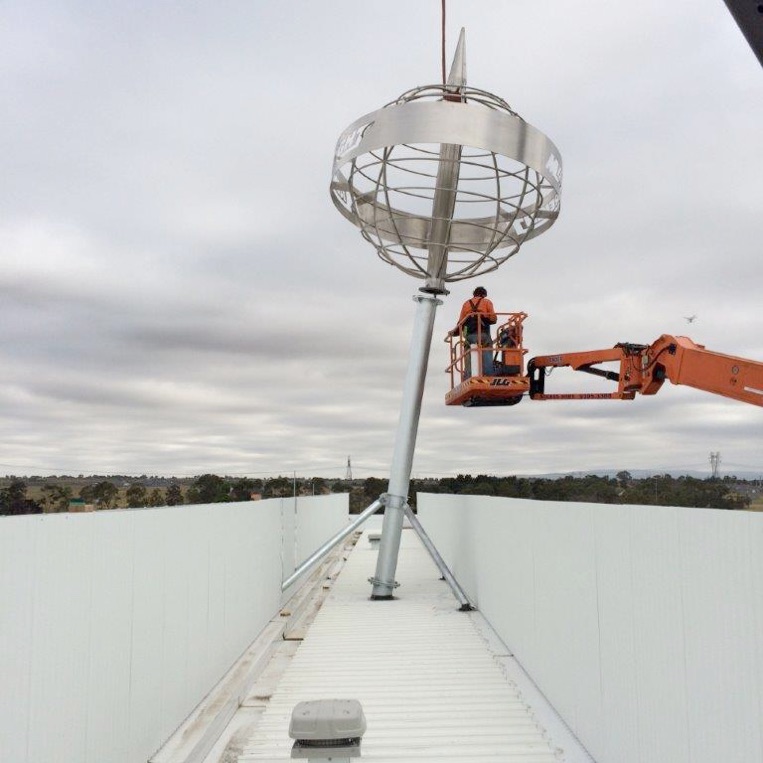

Due to the globe’s size, installation was coordinated between Ivanoff Design Consultants and the project engineers. “Our engineers worked with the engineers who designed the building to ensure they weren’t overstressing the  structure”.


We specialise in the complex and out-of-the-ordinary, and apply engineering principles and technology to building design and construction. “All our projects are one-off, different and challenging”.



For more information contact Ivanoff Design Consultants,

PO Box 6007, North Collingwood VIC 3066, mobile 0412 969 430, phone 03 9419 9733, email peter@ivanoffdesign.com, website www.Ivanoffdesign.com
