Performing Arts Centre, Kew

The curved glass curtain wall consists of 88 laminated 13mm toughened glass panels, each mounted with 4 stainless steel, single point, spider fittings.

The spider fittings are fixed to 4 curved T beams running the full width of the 25 metre wall, and are precisely mounted as glass panels are manufactured to extremely tight tolerances.

Contact Ivanoff Design about your project.

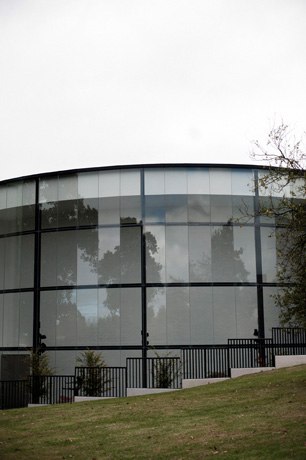

Curved glass curtain wall mounted in stainless steel.

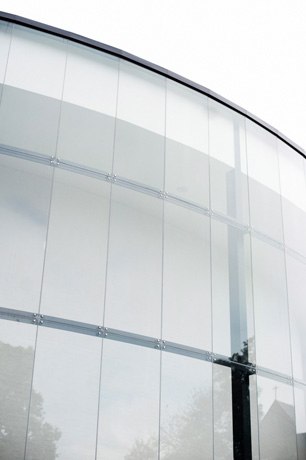

Showing countersunk bolt heads in spider fittings at each corner of panel.

Showing top flashing and floor channel.
